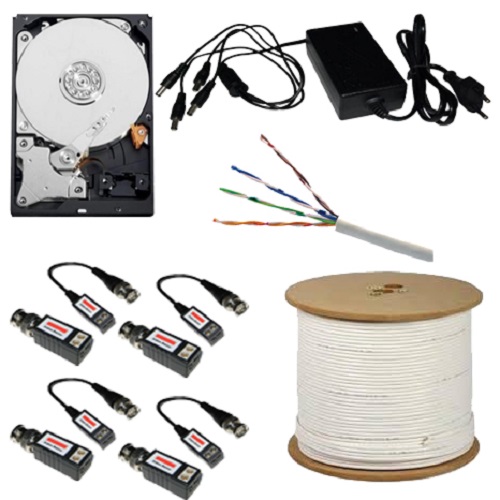

Categorie: Kituri

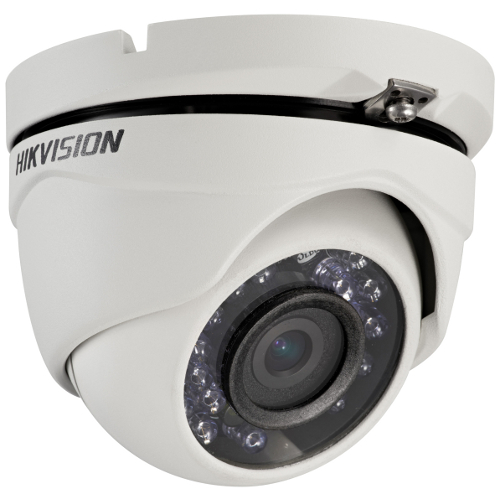

Descriere DS-2CE56D0T-IRMF|
Camera |
|
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Effective Pixels |
1984(H) x 1105(V) |
|
Min. Illumination |
0.01 Lux @ F1.2, AGC ON, 0 Lux with IR |
|
Shutter Time |
1/25s to 1/50.000s |
|
Lens |
2.8mm (3.6mm, 6mm optional) |
|
Angle of View: 76.88° (3.6mm), 99.73° (2.8mm), 50.1° (6mm) |
|
|
Lens Mount |
M12 |
|
Angle Adjustment |
Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
|
Day & Night |
ICR |
|
Synchronization |
Internal synchronization |
|
Video Frame Rate |
25 fps PAL |
|
HD Video Output |
1 Analog HD output |
|
S/N Ratio |
More than 52dB |
|
General |
|
|
Working Temperature |
-40°C ~ +60°C |
|
Working Humidity |
Humidity 90% or less (non-condensing) |
|
Power Supply |
12 VDC |
|
Power Consumption |
max. 4W |
|
Weatherproof Ratings |
IP66 |
|
IR Range |
up to 20m |
|
Dimensions |
Ø 70 x 149.5mm |
|
Weight |
360g |
Descriere DS-2CE56D0T-IRMF|

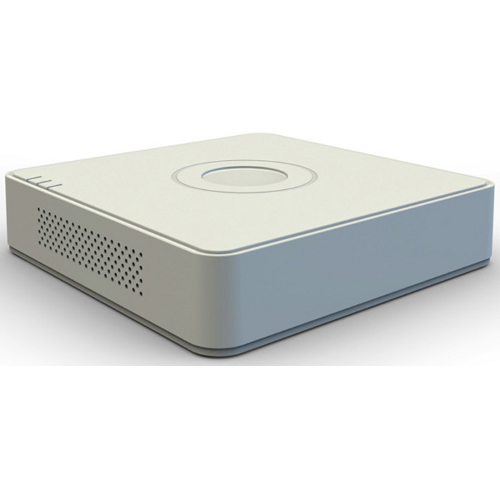

Model |
DS-7104HQHI-F1/N |
|
|
Video / Audio input |
||
|
Video compression |
H.264 |
|
|
Analog and HD-TVI video input |
4-ch |
|
|
BNC interface, 1.0Vp-p, 75Ω |
||
|
Supported camera types |
Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
|
|
Audio compression |
G.711u |
|
|
Audio input / Two-way audio IN |
1-ch, RCA, 2.0 Vp-p, 1KΩ |
|
|
Video/Audio output |
||
|
HDMI / VGA output |
1920x1080 / 60Hz,1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz |
|
|
Encoding resolution |
Main stream |
1080P/ 720P / VGA / WD1 / 4CIF / CIF |
|
Sub-stream |
WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
|
|
Frame rate |
Main stream |
1/16 fps ~ Real time frame rate |
|
Sub-stream |
1/16 fps ~ Real time frame rate |
|
|
Video bitrate |
32 Kbps - 6 Mbps |
|
|
Audio output |
1-ch, RCA, Linear, 1KΩ |
|
|
Audio bitrate |
64 Kbps |
|
|
Dual-stream |
Support |
|
|
Stream type |
Video, Video & Audio |
|
|
Synchronous playback |
4-ch |
|
|
Playback resolution |
1080P/ 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
|
|
Network management |
||
|
Remote connections |
128 |
|
|
Network protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
|
|

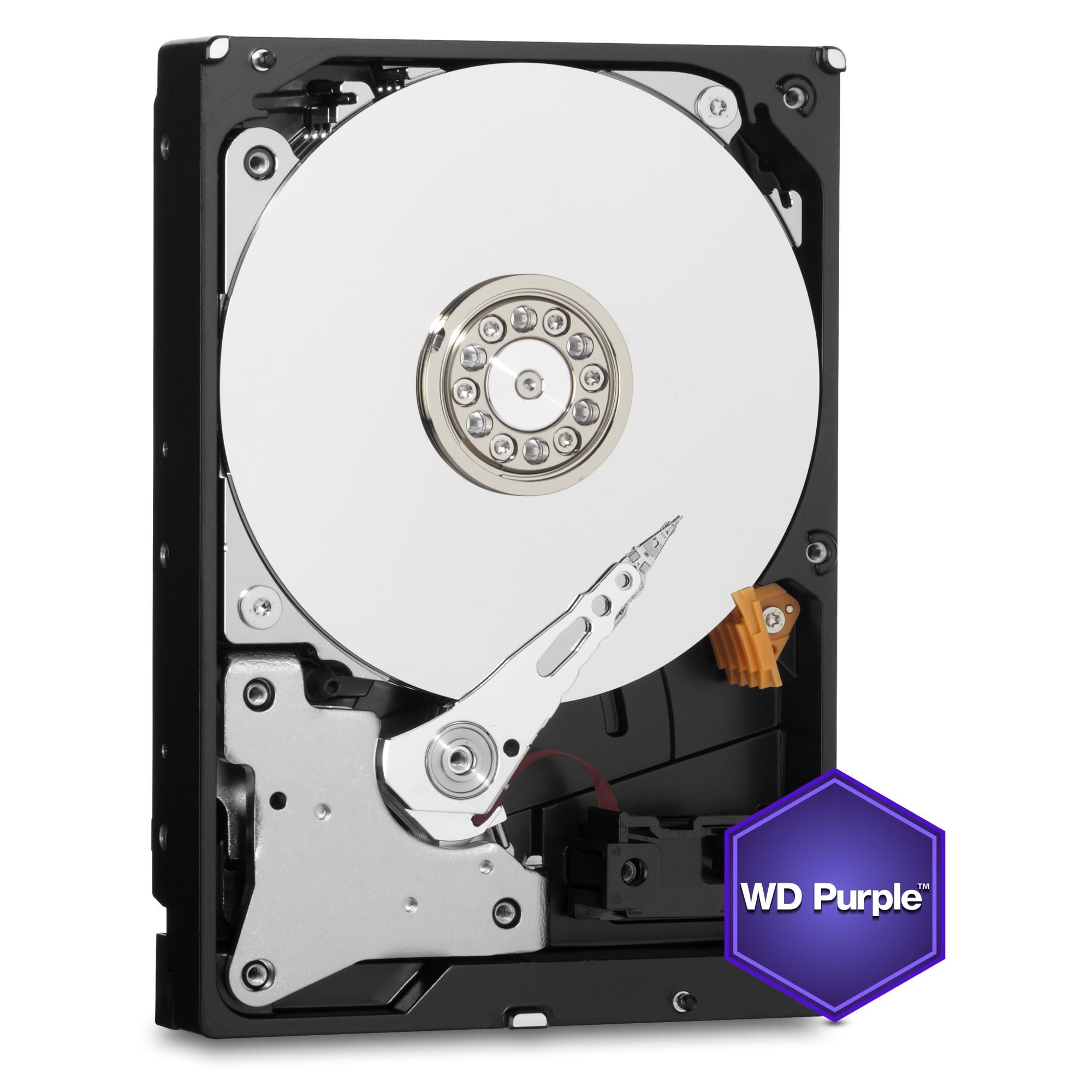

Hard disk |
||
|
Type |
SATA interfaces |
|
|
SATA |
1 SATA interface |
|
|
Capacity |
Up to 6 Tb capacity for each disk |
|
|
External interface |
||
|
Network interface |
1; 10M / 100M self-adaptive Ethernet interface |
|
|
Serial interface |
1; standard RS-485 serial interface, half-duplex |
|
|
USB port |
2 x USB2.0 |
|
|
General |
||
|
Power supply |
12 VDC |
|
|
Consumption (without hard disks) |
≤ 25W |
|
|
Working temperature |
-10ºC ~ +55ºC |
|
|
Working humidity |
10% ~ 90% |
|
|
Chassis |
1U chassis |
|
|
Dimensions (W × D × H) |
315 x 242 x 45mm |
|
|
Weight (without hard disks) |
≤ 2Kg |
