Categorie: Kituri

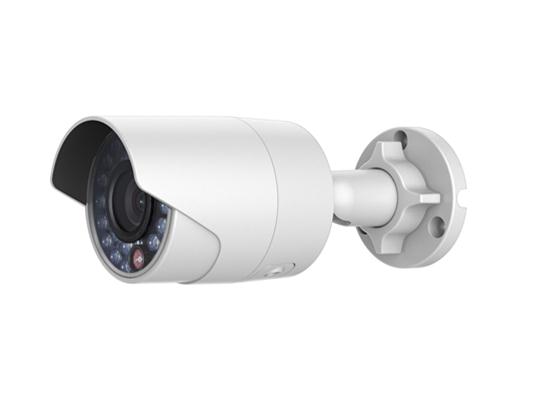

Descriere DS-2CD2045WD-I| Camera | |
|---|---|
| Image Sensor: | 1/2,5" Progressive scan CMOS |
| Min. Illumination: | 0.008 Lux@ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Lens: |
2.8 mm @ F2.0, Angle of view: 92° |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | WDR 120dB |
| Digital noise reduction: | 3D DNR |
| Compression Standard | |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 32Kbps~16Mbps |
| Dual Stream: | Yes |
| Image | |
| Max. Image Resolution: | 2688 × 1520 |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Suppport |
| Network | |
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | Max. 5 W |
| Weather Proof: | IP67 |
| IR Range: | ExIR 30m |
| Dimensions: | 70 × 155.03 mm (2.8” × 6.2” × 2.4”) |
| Weight: | 410g |
Descriere DS-2CD2045WD-I| Video/Audio Input | |
|---|---|
| IP video input: | 4-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth: | 40Mbps |
| Outgoing bandwidth: | 80Mbps |
| Remote connection: | 32 |
| Video/Audio Output | |
| HDMI/VGA output: |
1-ch, resolution: 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording Resolution: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate: | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| Decoding | |
| Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 4-ch@1080P |
| Hard Disk | |
| SATA: | 1 SATA interface for 1 HDD |
| Capacity: | Up to 4TB for each disk |
| External Interface | |
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In: | 4-ch |
| Alarm Out: | 1-ch |
| General | |
| Power Supply: | 12V DC |
| Consumption(without hard disk and POE): | ≤ 10W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 2U chassis |
| Dimensions: | 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) |
| Weight(without HDD): | ≤ 1 kg |
