Model |

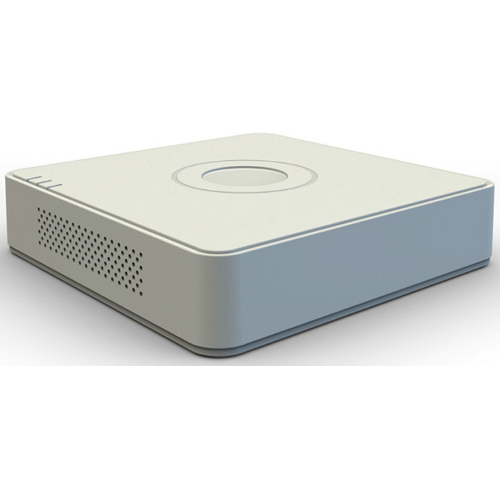

DS-7108HQHI-F1/N |
|
|
Video / Audio input |
||
|
Video compression |
H.264 |
|
|
Analog and HD-TVI video input |
4-ch |
|
|
BNC interface, 1.0Vp-p, 75Ω |
||
|
Supported camera types |
720P25, 720P50, CVBS |
|
|
Audio compression |
G.711u |
|
|
Audio input / Two-way audio IN |
1-ch, RCA, 2.0 Vp-p, 1KΩ |
|
|
Video/Audio output |
||
|
HDMI / VGA output |
1920x1080 / 60Hz,1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz |
|
|
Encoding resolution |
Main stream |
1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF |
|
Sub-stream |
WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA |
|
|
Frame rate |
Main stream |
1/16 fps ~ Real time frame rate |
|
Sub-stream |
1/16 fps ~ Real time frame rate |
|
|
Video bitrate |
32 Kbps - 6 Mbps |
|
|
Audio output |
1-ch, RCA, Linear, 1KΩ |
|
|
Audio bitrate |
64 Kbps |
|
|
Dual-stream |
Support |
|
|
Stream type |
Video, Video & Audio |
|
|
Synchronous playback |
4-ch |
|
|
Playback resolution |
1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
|
|
Network management |
||
|
Remote connections |
128 |
|
|
Network protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
|
|
Hard disk |
||
|
Type |
SATA interfaces |
|
|
SATA |
1 SATA interface |
|
|
Capacity |
Up to 6 Tb capacity for each disk |
|
|
External interface |
||
|
Network interface |
1; 10M / 100M self-adaptive Ethernet interface |
|
|
Serial interface |
1; standard RS-485 serial interface, half-duplex |
|
|
USB port |
2 x USB2.0 |
|
|
General |
||
|
Power supply |
12 VDC |
|
|
Consumption (without hard disks) |
≤ 15W |
|
|
Working temperature |
-10ºC ~ +55ºC |
|
|
Working humidity |
10% ~ 90% |
|
|
Chassis |
1U chassis |
|
|
Dimensions (W × D × H) |
315 x 242 x 45mm |
|
|
Weight (without hard disks) |
≤ 1.5Kg |
